2-component dispensers

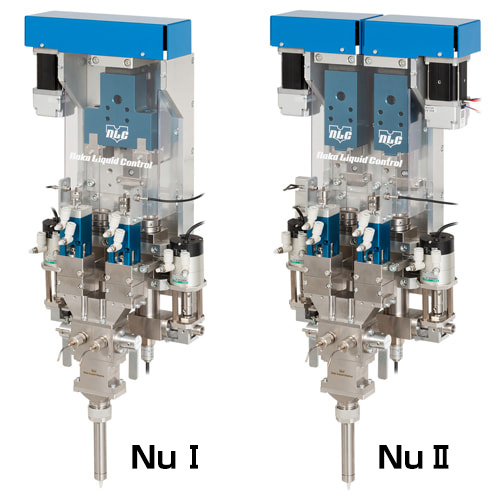

Micro volume discharge type 2-component dispenserNu I/II

Micro volume discharge type 2-component dispenser Nu I/II

Micro volume discharge type 2-component dispenser Nu I/II

The Nu I/II - our flagship model for micro volume discharge is now available in a lineup of NLC-original volumetric (plunger pump) dispensers. The new functions and mechanics for ensuring high-accuracy discharging meet high-level requirements.

  • Modularized unit for working with various types of resin.
  • Unique pump structure for easily bleeding air even with high-viscosity liquids
  • Constant inner pressure for stable discharging*
    *Nu II only
  • The 7″ wide color screen displays various information at the same time.
    Compact and lightweight aluminum casing makes the panel readily mobile.

Specifications

Discharge range 0.036 - 5ml *1
Mixing ratio 100 :100 - 100 :50 *2
Viscosity range 1 - 300,000mPa・s
Material tank 330-ml-cartrige tank or 2.5-kg-container tank
Mixer Static mixer
Metering system Volumetric metering(Plunger type)
Drive system Servo motor drive
Air supply 0.4MPa(Dry air)
Power consumption AC200V・1.2kW
*1. The values given above are theoretical. Actual values can vary depending on the environment and the resins being used.
*2. Dependent on the resin type. The range may not be applicable to some types of resin.Consult your nearest sales office for special cases.
